Product Characteristics:
- Preferred to use in ball mills to arrest the contamination of ground material & also to avoid the direct impact on the machine depreciation.

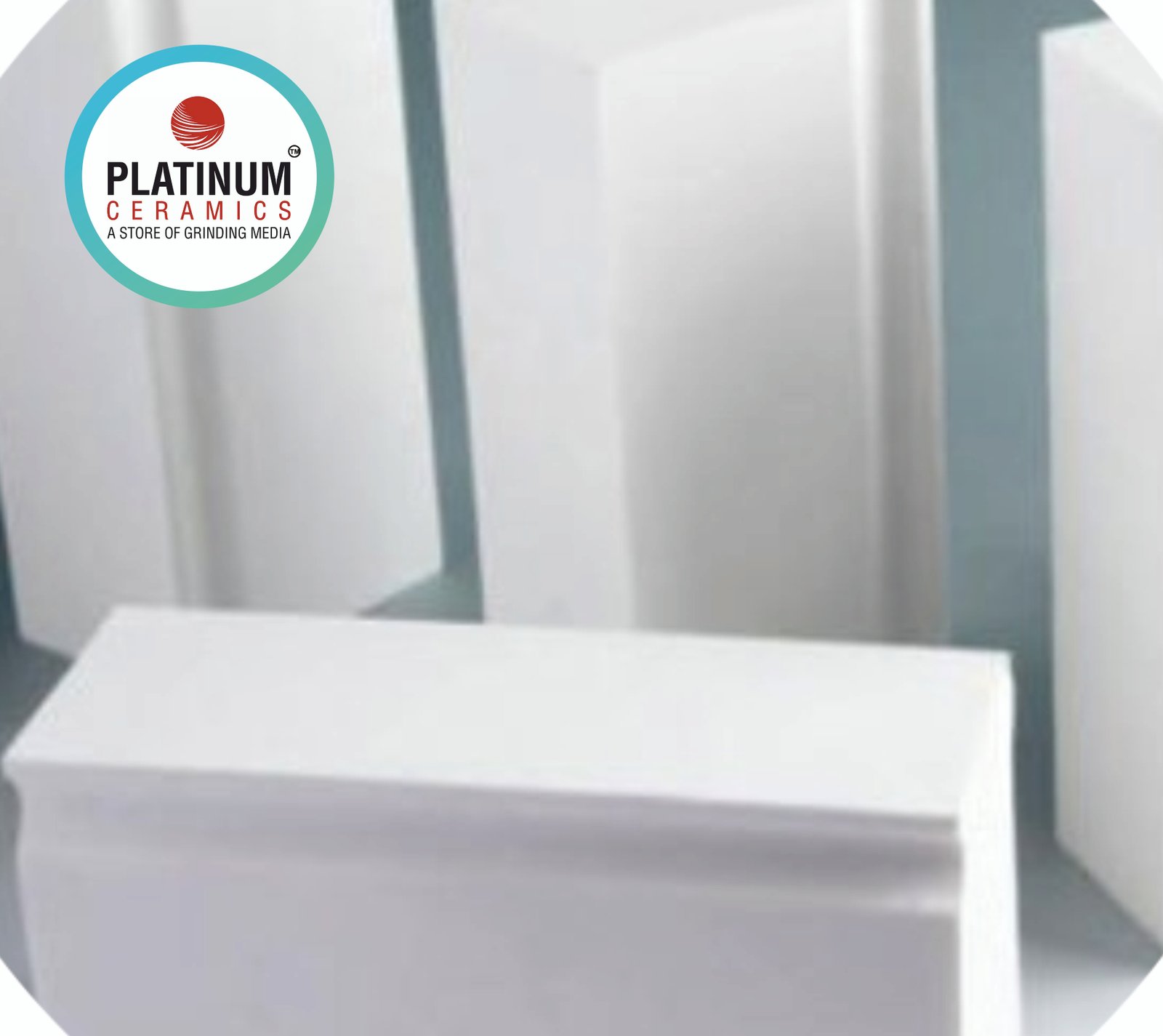

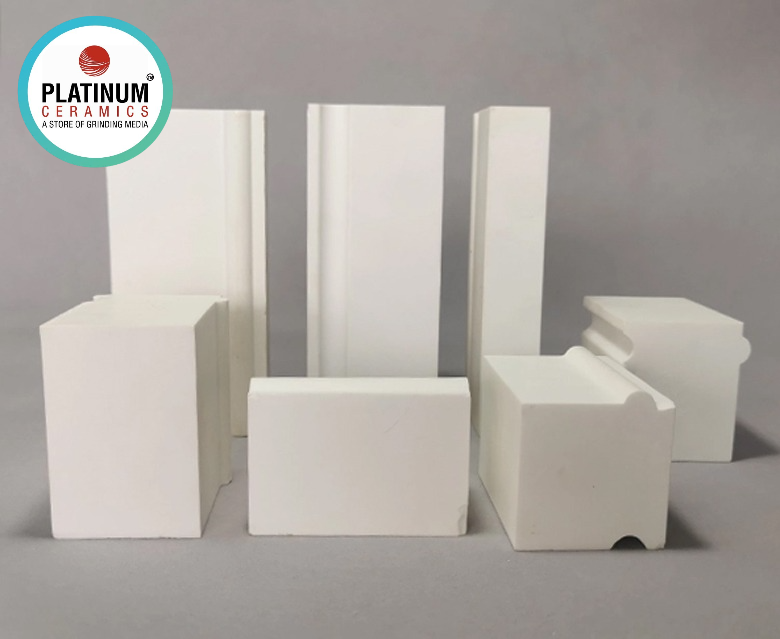

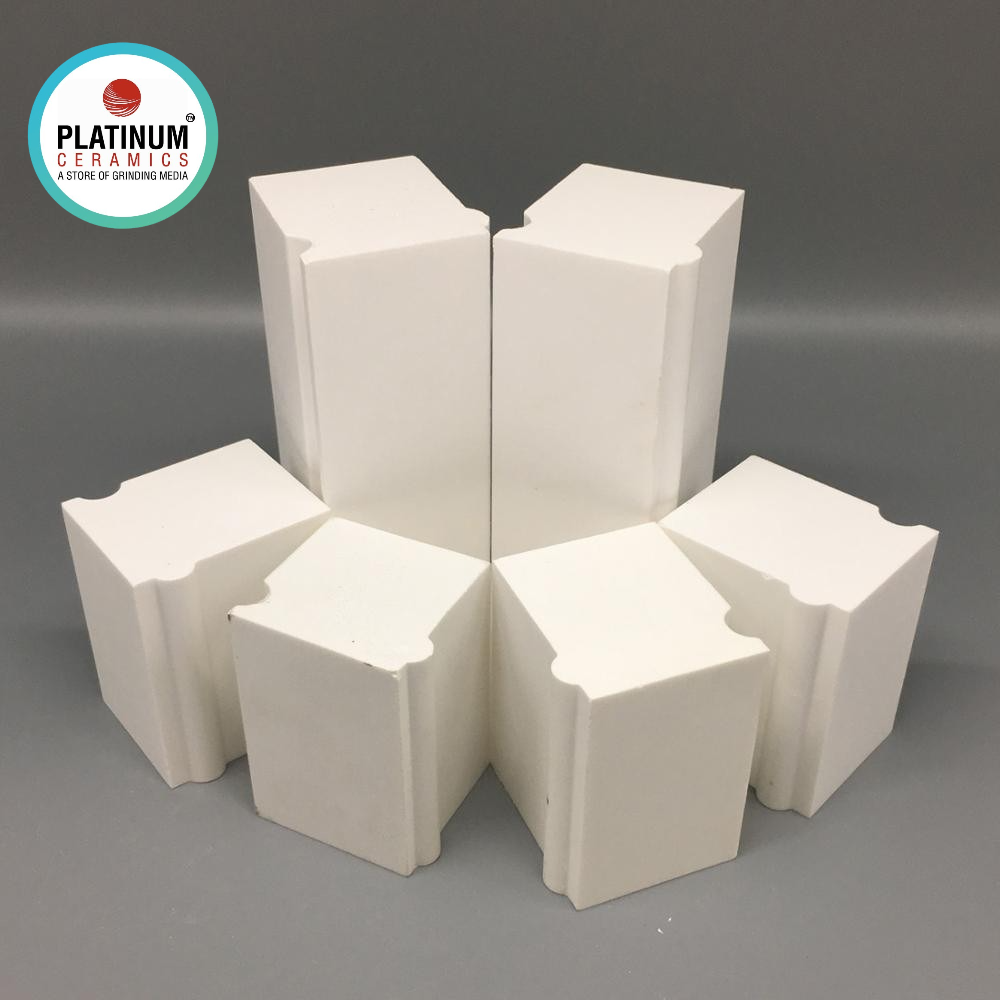

High Density Steatite Ceramic Lining Bricks – HDSLB
Manufacturer: Platinaa Industrial Ceramics Pvt Ltd
The High Density Steatite Ceramic Lining Bricks (HDSLB) are designed for high-strength and cost-effective wear protection in various industrial processing environments. With a balanced chemical composition of 62% silica and 12% alumina, these bricks are engineered for outstanding mechanical strength, low attrition, and zero water absorption, making them ideal for chutes, hoppers, mills, and silos.
🧪 Chemical Properties
| Description | Parameters |
|---|---|
| Alumina (Al₂O₃) | 12% |
| Silica (SiO₂) | 62% |
| Magnesium (MgO) | 23.70% |
| Others | 2.30% |
🔧 Physical Properties
| Property | Value |
|---|---|
| Specific Gravity | 2.7 – 2.8 |
| Water Absorption | Nil |
| Apparent Porosity | Nil |
| Moh’s Hardness | 7.5 – 8.0 |
| Compressive Strength (kg/m³) | 9270 |
| Attrition Loss (wt% per hour) | 0.004 |
| Forming Method | Compact / Isostatic Pressing |
| Color | Creamy White |
📏 Available Sizes
Rectangle Bricks
| Length (mm) | Width (mm) | Height (mm) |
|---|---|---|
| 150 | 50 | 50 |
Tapper Bricks
| Length (mm) | Width (mm) | Height (mm) |
|---|---|---|
| 150 | 48/50 | 50 |
✅ Key Features
- High silica content for improved thermal shock resistance
- Excellent mechanical strength (9270 kg/m³)
- Zero water absorption and porosity
- Low attrition loss for extended service life
- Economical solution for wear lining in low-to-medium impact zones
📦 Applications
- Chutes and hoppers
- Grinding mills and silos
- Conveyor impact zones
- Bulk material handling equipment
Contact us for quotations, custom sizing, and volume-based pricing.
